Mechanical Snack Gripper

Eating chips or mini wafers leaves greasy fingers. I wanted a fully mechanical, handheld tool that can reach into a snack bag, pick up a single piece without crushing it, and let go cleanly.

The gripper is a symmetric linkage. Squeezing the trigger pushes a slider forward. The slider drives two links arranged in a V, and as the V widens the links push the tails of both jaws outward. Each jaw is a lever on a pivot pin, so when its tail moves out its tip moves in and the jaws close.

When the trigger is released, a thin flexible beam printed into the handle pushes the trigger back and the jaws reopen. That keeps the whole tool to printed parts only.

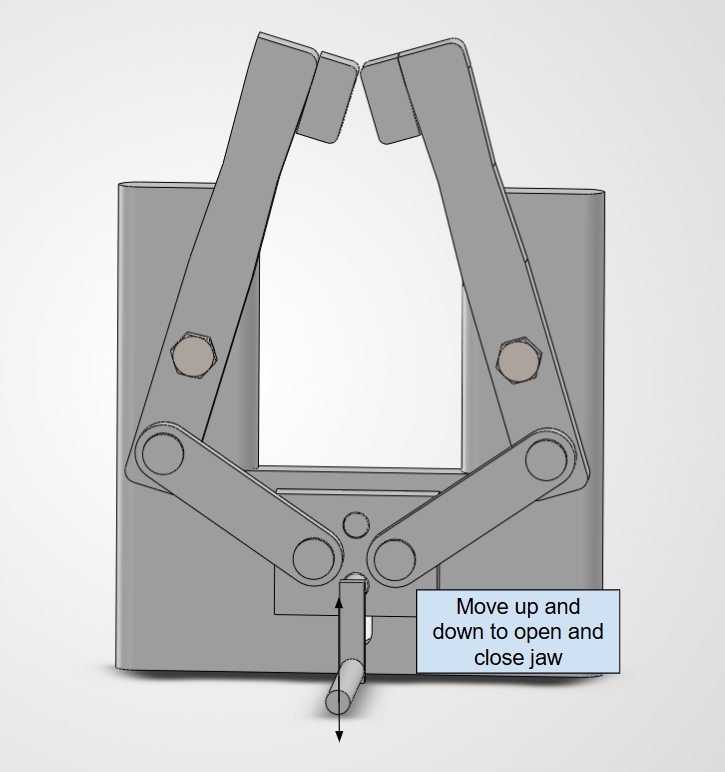

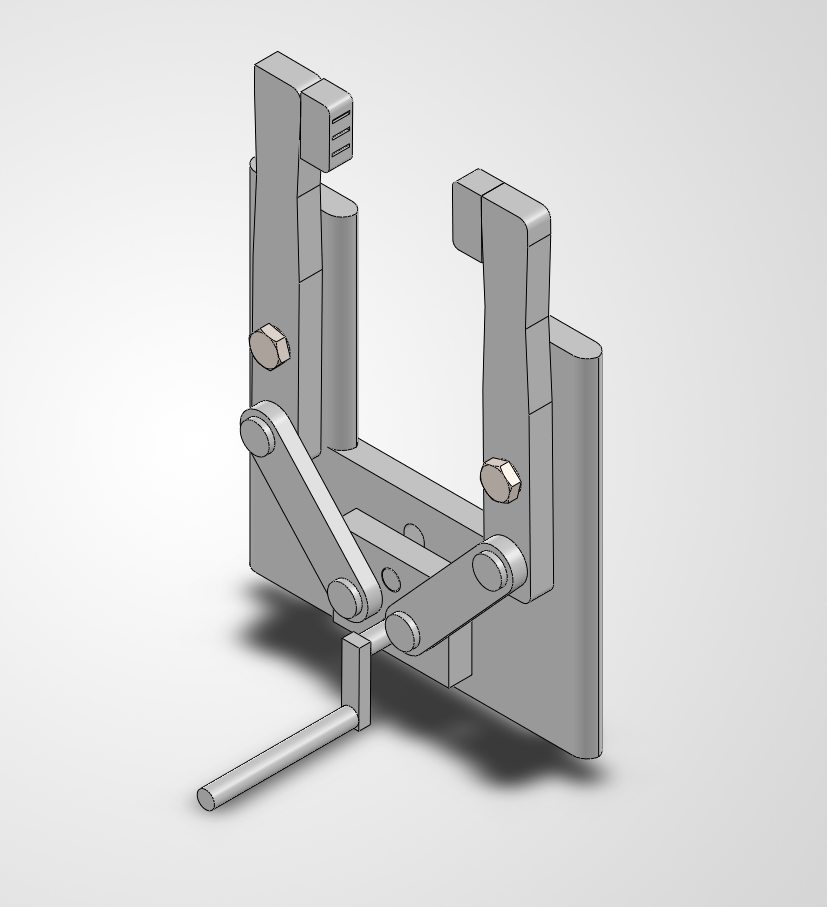

The first version used a centre slider-crank linkage to turn linear input into synchronized jaw motion. It reached a 44 mm maximum opening with 9.1 mm of slider travel.

• Not enough jaw range. 44 mm maximum opening fell short of the 60 mm needed for larger chips.
• No manufacturing clearances. Pins and holes were modelled line-to-line. Printed in PLA, holes come out small and pins come out large, so the joints would bind or not assemble.

I rebuilt the design as a pistol-grip tool. A trigger drives the slider, two links drive two pivoting jaws, and a printed flex beam returns the trigger. I set the jaw geometry using the analysis above, then added clearances at the pins, slider and clips before printing.

After a design review I made V2 stronger and easier to print:

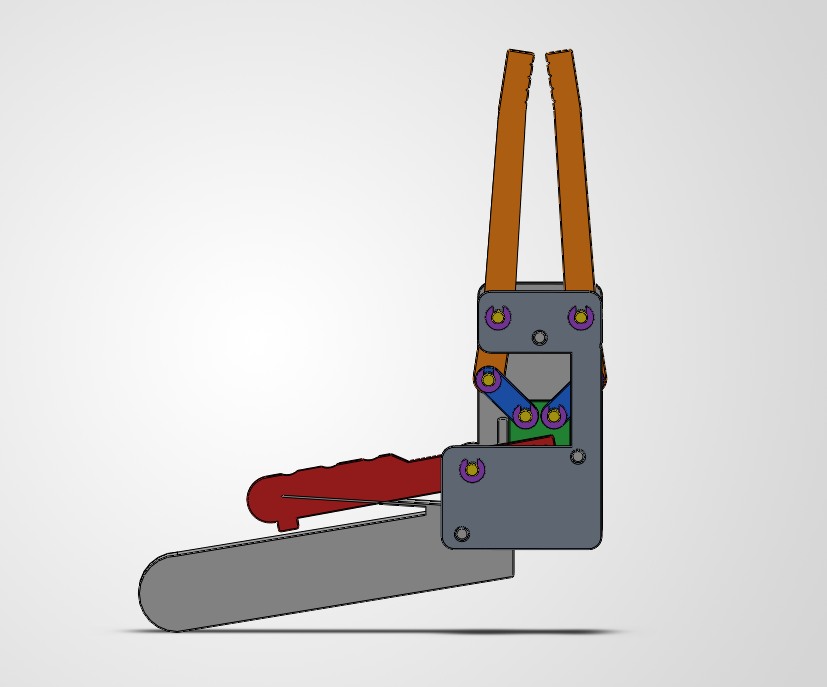

• Pins held on both ends. The jaw and trigger pivot pins were only held by the base plate, so they stuck out like a diving board. I added a printed lid on three posts, so each pin now goes through the base, the moving part and the lid, and every moving part sits between two surfaces.
• Rounds and chamfers for 3D printing. 1 mm rounds on the vertical corners and 0.4 mm × 45° chamfers on the top and bottom edges. The bottom chamfer stops the first layer squashing out, and the chamfered hole edges help the pins slide in straight. Rounds only go on vertical edges, because a round on a bottom edge would print as an overhang.

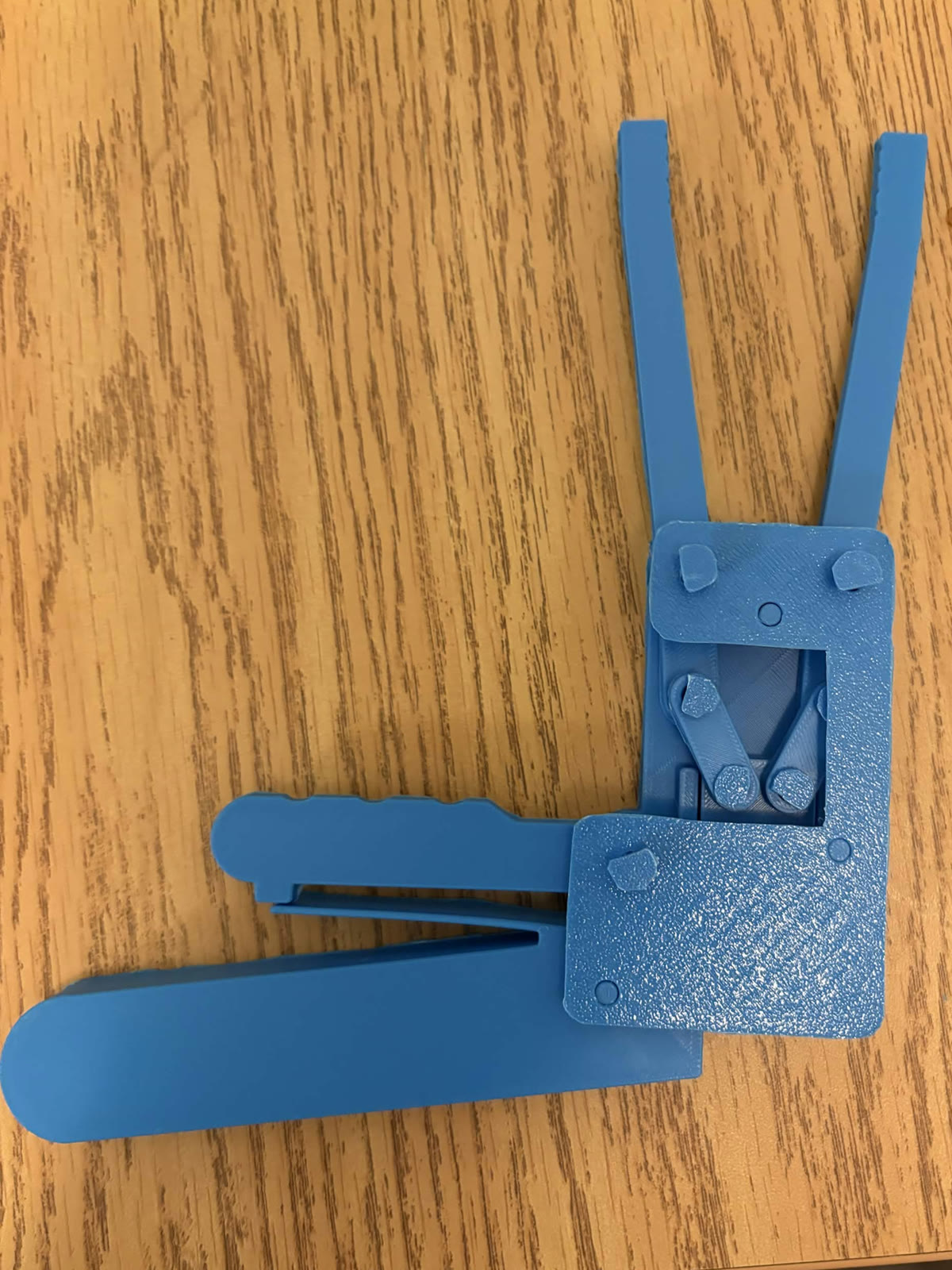

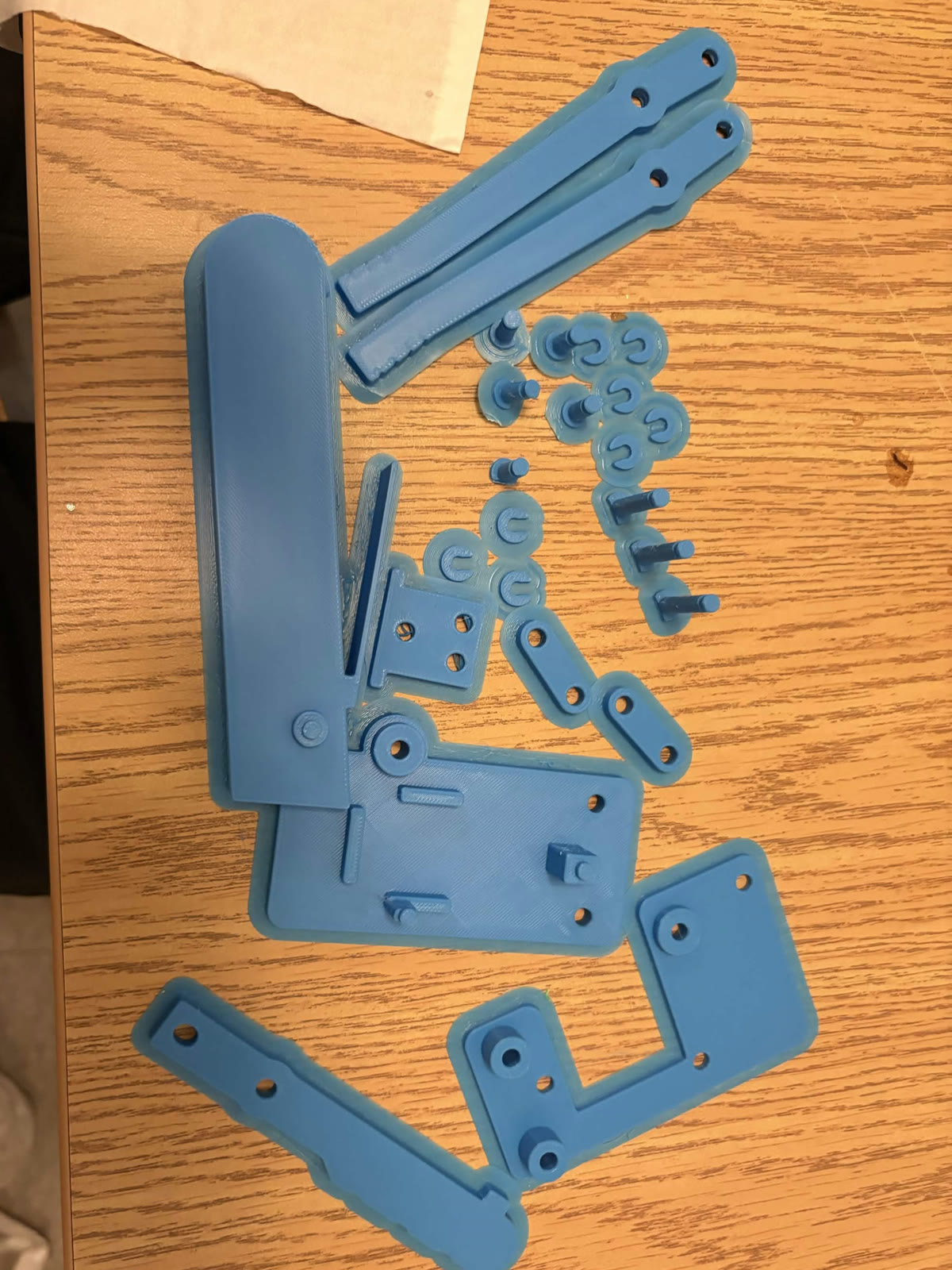

I FDM printed the V2 prototype in PLA Basic (0.4 mm nozzle, 0.20 mm layers), assembled it, and function tested it, checking the motion and jaw opening through repeated trigger pulls. In the video it picks up a wafer. This is a prototype, not the final version.

V2 meets every requirement in CAD, and the jaw range matches the SolidWorks motion check. The V2 prototype has now been FDM printed in PLA Basic (0.4 mm nozzle, 0.20 mm layers), assembled and function tested, with the motion and jaw opening checked through repeated trigger pulls.

What FEA is: FEA (finite element analysis) splits a part into tens of thousands of tiny pieces and works out how hard each piece is being stretched or squeezed. It shows where a part is most likely to bend or break before you ever print it.

What I tested: the two parts that take the most force, the jaw and the trigger. I used PLA, since that is what I printed with, and a deliberately hard 50 N squeeze (about the force of holding up a 5 kg bag with one finger) with the jaws clamped on a snack.

How to read the pictures: blue means the plastic is barely working. Green, yellow and red mean it is working harder. PLA starts to bend for good at about 50 MPa.

What it means:

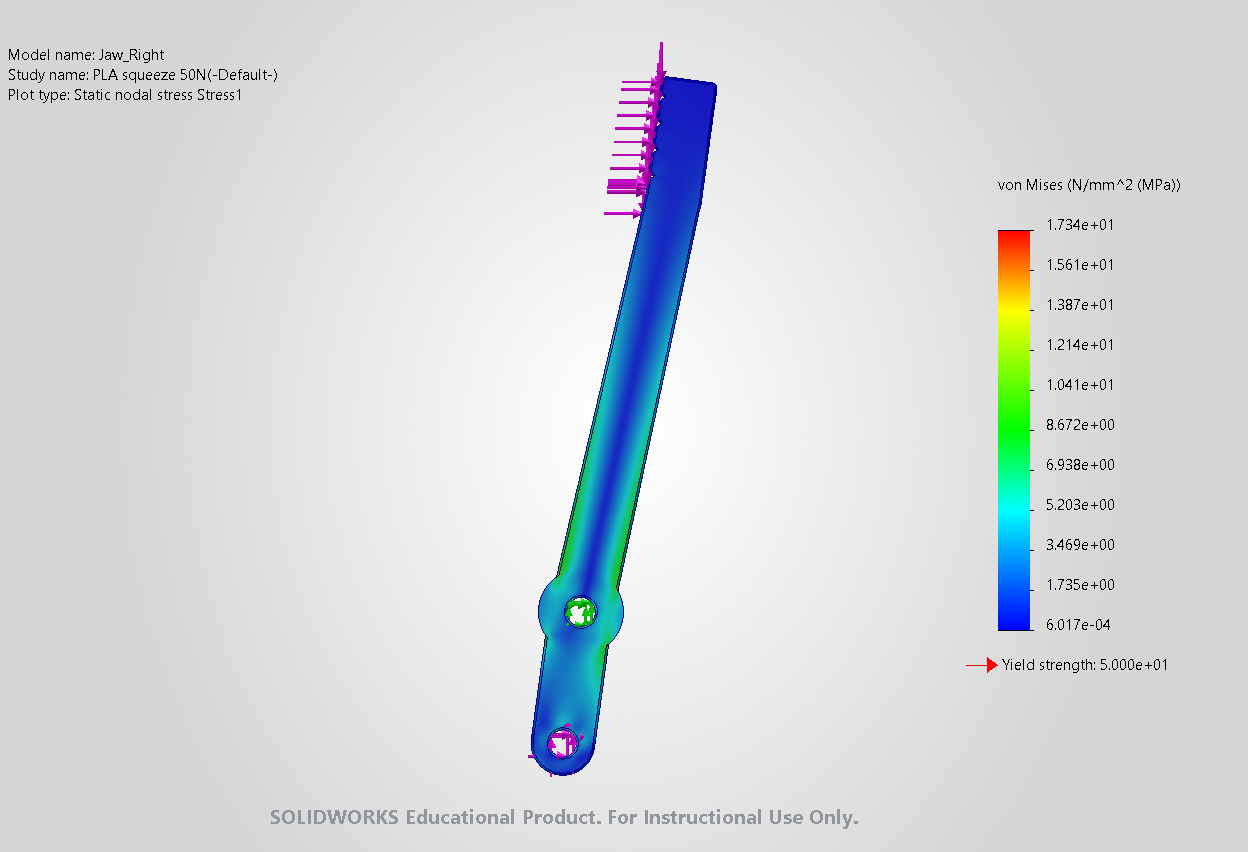

• Jaw: the highest stress is 17.3 MPa, about a third of what PLA can take. Its factor of safety is 2.9, so it could handle a squeeze about 3 times harder before it bends for good. The tip flexes 1.8 mm under that hard squeeze, which just feels like a little springiness.

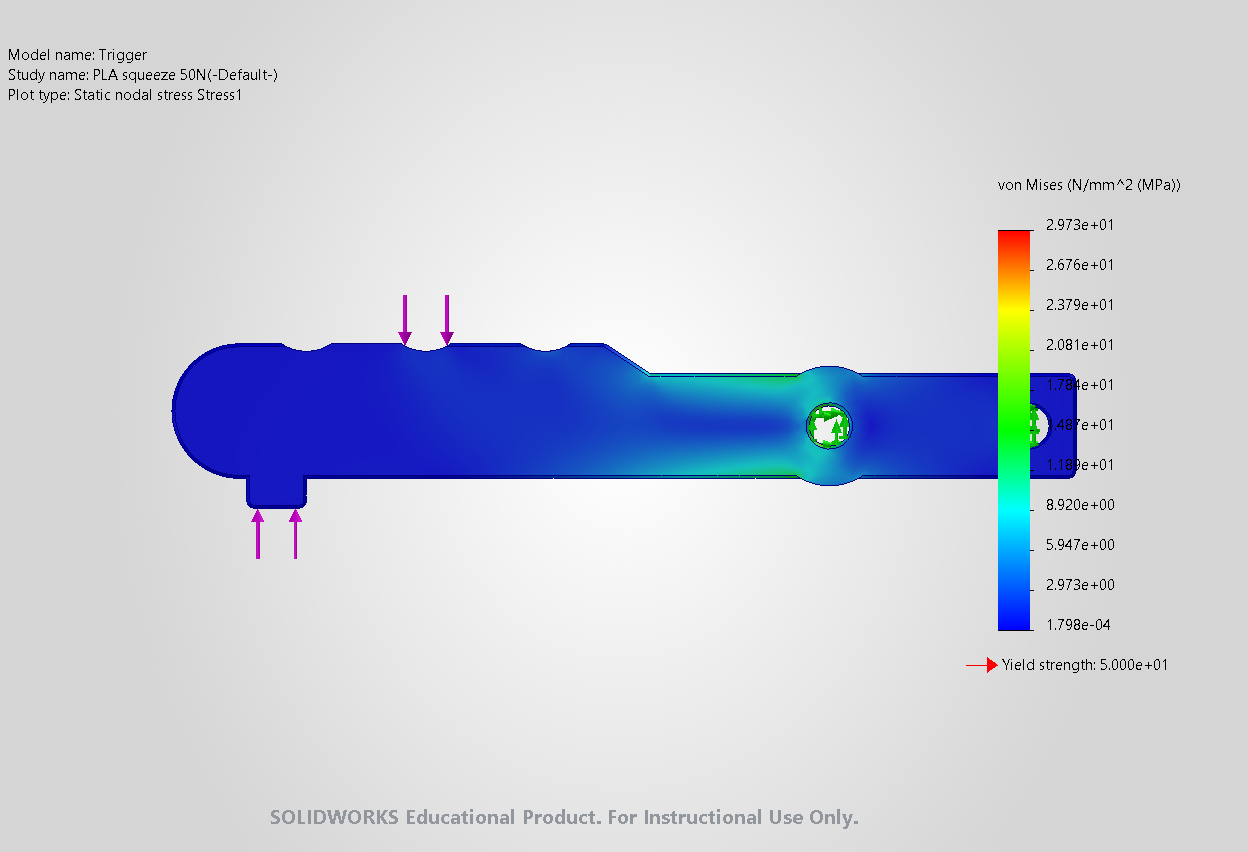

• Trigger: the highest stress is 29.7 MPa (factor of safety 1.7). That peak is at the hole where the slider pin pushes, which I locked completely solid in the model. A real pin moves a little, so the real stress there is lower. In the main lever, where your fingers go, the factor of safety is about 3.4.
• Bottom line: neither part should bend or break under a hard squeeze, and normal snack-grabbing is far gentler than this test.
